안녕하세요. 주식회사 서버몬 입니다.
DELL EMC 서버는 Linux 와 Windows 환경 하에서 서버의 상태를 모니터링 할 수 있는 툴을 제공 하고 있습니다.
OMSA(OpenManage Server Administrator) 라는 툴을 설치 하면 서버 상태를 모니터링 할 수 있습니다.
# 본 가이드는 CentOS 7 버젼을 기준으로 제작 되었습니다.
# OS 버젼에 맞는 OMSA를 설치하지 않으면 설치가 정상적으로 되지 않거나 오작동 할 수 있으니 유의 하시기 바랍니다.

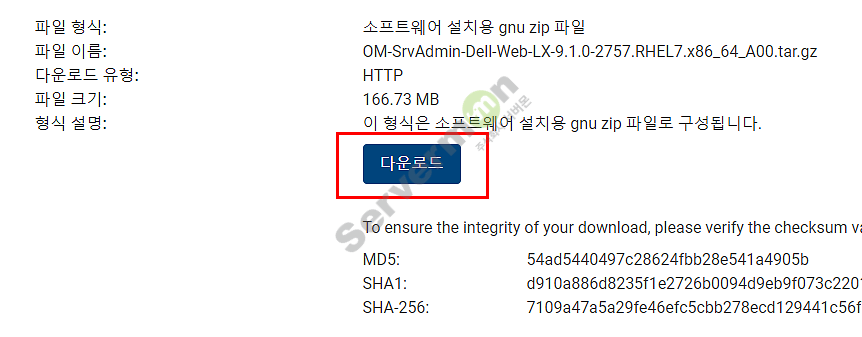

1. 하기의 링크에서 OMSA를 다운로드 합니다.
www.dell.com/support/home/ko-kr/drivers/driversdetails?driverid=4pwd2
Challenge Page
www.dell.com
2. 서버에 해당 파일을 옮긴 후 압축을 해제 합니다.

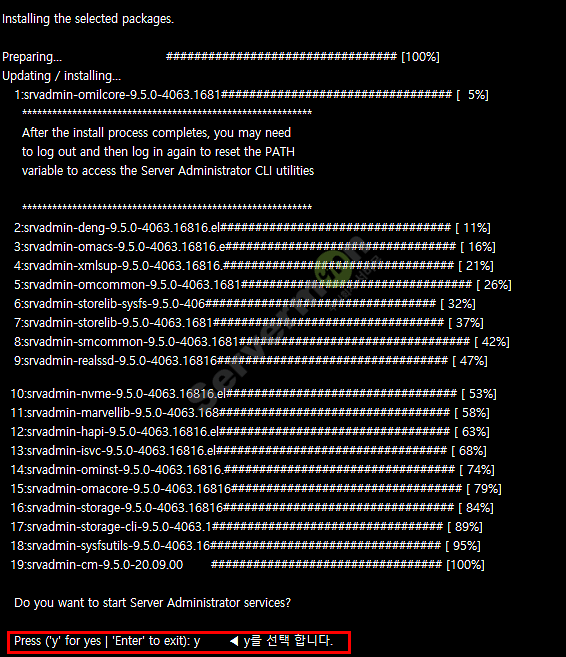

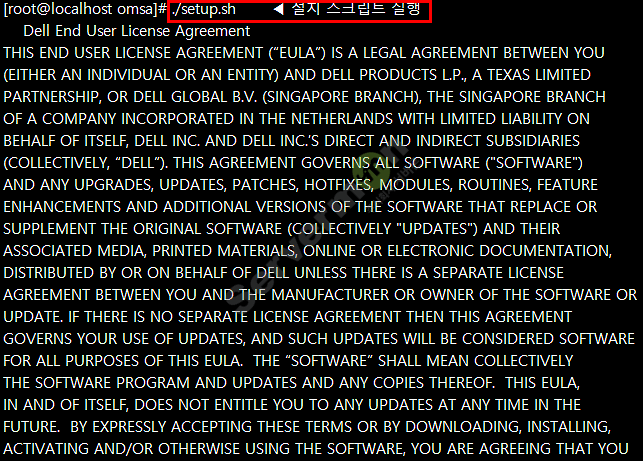

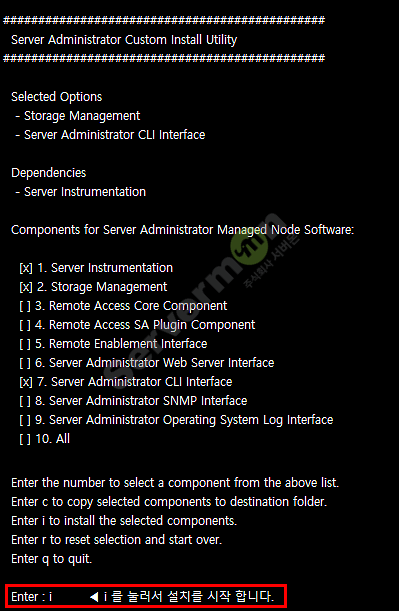

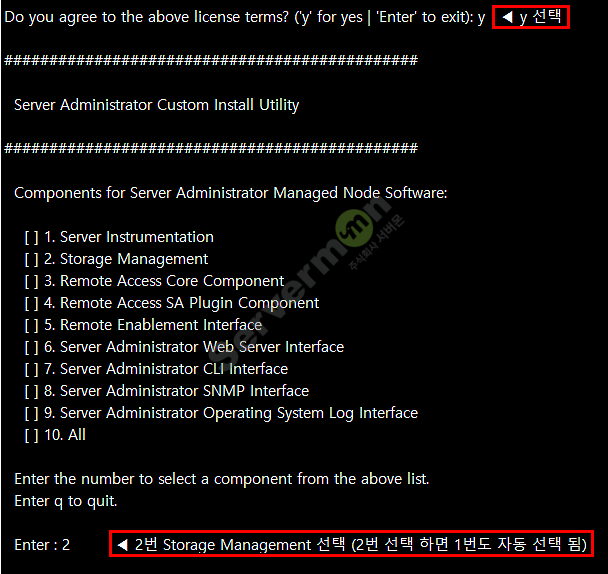

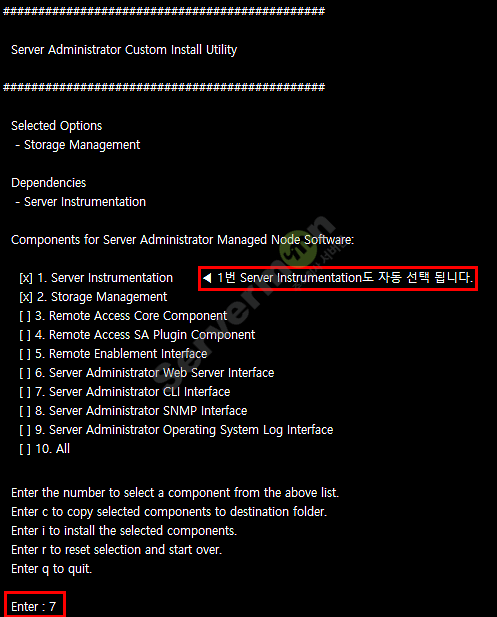

3. 설치 스크립트 실행
* 시스템 정보 확인 명령어
| [root@localhost ~]# omreport system summary ◀ 시스템의 정보(서버 정보, 펌웨어 등) 확인 System Summary ------------------ Software Profile ------------------ Systems Management Name : Dell EMC OpenManage Server Administrator Version : 9.5.0 Description : Systems Management Software Contains : Data Engine 9.5.0 : Hardware Abstraction Programming Interface 9.5.0 : Instrumentation Services 9.5.0 : MarvelLib package for storage management 9.5.0 : NVMe Library 9.5.0 : OpenManage Inventory Collector 9.5.0 : RealSSD package for storage management 9.5.0 : Server Administrator CLI 9.5.0 : Server Administrator Common Framework 9.5.0 : Server Administrator Common Services 9.5.0 : Server Administrator Core 9.5.0 : Server Administrator XML Support SDK 9.5.0 : Storage Management CLI component 6.5.0 : Storage Management System Utilities Package / Libsysfs 1.3.0 : Storage Management accessors package 6.5.0 : Storage Management common files for GUI and CLI 6.5.0 : StoreLib package for storage management 9.5.0 : System Utilities Package/Libsysfs for LSI storage libraries 2.1.0 Operating System Name : CentOS Linux Version : release 7.9.2009 (Core) Kernel 3.10.0-1160.el7.x86_64 (x86_64) System Time : Wed Feb 17 07:52:36 2021 System Bootup Time : Wed Feb 17 07:39:37 2021 -------- System -------- System Host Name : localhost.localdomain System Location : Please set the value Lifecycle Controller : Enabled --------------------- Main System Chassis --------------------- Chassis Information Chassis Model : PowerEdge R540 Chassis Service Tag : H1X0LB3 Express Service Code : 37121220831 Chassis Lock : Present Chassis Asset Tag : Unknown Node Id : H1X0LB3 System Lockdown Mode : Disabled Remote Access Information Remote Access Device : iDRAC9 Enterprise vFlash Media : Absent Processor 1 Processor Brand : Intel(R) Xeon(R) Silver 4208 CPU @ 2.10GHz Processor Version : Model 85 Stepping 7 Voltage : 1800 mV Memory Total Installed Capacity : 32768 MB Memory Available to the OS : 31600 MB Total Maximum Capacity : 1048576 MB Memory Array Count : 1 Memory Array 1 Location : System Board or Motherboard Use : System Memory Installed Capacity : 32768 MB Maximum Capacity : 1048576 MB Slots Available : 16 Slots Used : 2 ECC Type : Multibit ECC Slot PCIe Slot 2 Adapter : [Not Occupied] Type : PCI E Gen 3 Data Bus Width : 8x or x8 Speed : [Not Obtained, see card documentation] Slot Length : Short Voltage Supply : 3.3 Volts Slot PCIe Slot 3 Adapter : [Not Occupied] Type : PCI E Gen 3 Data Bus Width : 8x or x8 Speed : [Not Obtained, see card documentation] Slot Length : Short Voltage Supply : 3.3 Volts Slot PCIe Slot 4 Adapter : [Not Occupied] Type : PCI E Gen 3 Data Bus Width : 16x or x16 Speed : [Not Obtained, see card documentation] Slot Length : Short Voltage Supply : 3.3 Volts Slot PCIe Slot 5 Adapter : [Not Occupied] Type : PCI E Gen 3 Data Bus Width : 4x or x4 Speed : [Not Obtained, see card documentation] Slot Length : Short Voltage Supply : 3.3 Volts Slot PCIe Slot 6 Adapter : [Not Occupied] Type : PCI E Gen 3 Data Bus Width : 4x or x4 Speed : [Not Obtained, see card documentation] Slot Length : Short Voltage Supply : 3.3 Volts Slot Mezzanine 1 Adapter : [Not Occupied] Type : PCI E Gen 3 Data Bus Width : 8x or x8 Speed : [Not Obtained, see card documentation] Slot Length : Other Voltage Supply : 3.3 Volts BIOS Information Manufacturer : Dell Inc. Version : 2.9.3 Release Date : 09/23/2020 Firmware Information Name : iDRAC9 Version : 4.32.10.00 (Build 21) Firmware Information Name : Lifecycle Controller Version : 4.32.10.00 -------------- Network Data -------------- Network Interface 0 IP Address : 192.168.0.133 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.0.1 MAC Address : 2C:EA:7F:90:2E:61 Network Interface 1 IP Address : [No Value] MAC Address : 2C:EA:7F:90:2E:62 Team Interface 0 IP Address : [No Value] MAC Address : 52:54:00:09:1B:D8 -------------------- Storage Enclosures -------------------- Storage Enclosures Name : Backplane [root@localhost ~]# [root@localhost ~]# omreport chassis bmc ◀ iDRAC 정보 확인 Remote Access Information Remote Access Device Device Type : iDRAC9 Enterprise IPMI Version : 2.0 System GUID : 33424c4f-c0c8-3080-5810-00314c4c4544 Number of Possible Active Sessions : 5 Number of Current Active Sessions : 0 Enable IPMI Over LAN : No SOL Enabled : Yes MAC Address : 2C-EA-7F-90-2E-5B IPv4 Address IP Address Source : DHCP IP Address : 192.168.0.132 IP Subnet : 255.255.255.0 IP Gateway : 192.168.0.1 [root@localhost ~]# [root@localhost ~]# omreport storage controller ◀ RAID Controller 정보 확인 Controller PERC H730P Adapter(Embedded) Controller ID : 0 Status : Ok Name : PERC H730P Adapter Slot ID : Embedded State : Ready Firmware Version : 25.5.8.0001 Minimum Required Firmware Version : Not Applicable Driver Version : 07.716.01.00 Minimum Required Driver Version : Not Applicable Storport Driver Version : Not Applicable Minimum Required Storport Driver Version : Not Applicable Number of Connectors : 2 Rebuild Rate : 30% BGI Rate : 30% Check Consistency Rate : 30% Reconstruct Rate : 30% Alarm State : Not Applicable Cluster Mode : Not Applicable SCSI Initiator ID : Not Applicable Cache Memory Size : 2048 MB Patrol Read Mode : Auto Patrol Read State : Stopped Patrol Read Rate : 30% Patrol Read Iterations : 1 Abort Check Consistency on Error : Disabled Allow Revertible Hot Spare and Replace Member : Enabled Load Balance : Not Applicable Auto Replace Member on Predictive Failure : Disabled Redundant Path view : Not Applicable CacheCade Capable : Not Applicable Persistent Hot Spare : Disabled Encryption Capable : Yes Encryption Key Present : No Encryption Mode : None Preserved Cache : Not Applicable Spin Down Unconfigured Drives : Disabled Spin Down Hot Spares : Disabled Spin Down Configured Drives : Disabled Automatic Disk Power Saving (Idle C) : Disabled Start Time (HH:MM) : Not Applicable Time Interval for Spin Up (in Hours) : Not Applicable T10 Protection Information Capable : No Non-RAID HDD Disk Cache Policy : Unchanged Current Controller Mode : RAID [root@localhost ~]# [root@localhost ~]# omreport storage vdisk ◀ RAID 구성 정보 확인 List of Virtual Disks in the System Controller PERC H730P Adapter (Embedded) ID : 0 Status : Ok Name : VD0 State : Ready Hot Spare Policy violated : Not Assigned Encrypted : No Layout : RAID-1 Size : 446.63 GB (479559942144 bytes) T10 Protection Information Status : No Associated Fluid Cache State : Not Applicable Device Name : /dev/sda Bus Protocol : SATA Media : SSD Read Policy : Read Ahead Write Policy : Write Back Cache Policy : Not Applicable Stripe Element Size : 64 KB Disk Cache Policy : Unchanged ID : 1 Status : Ok Name : VD1 State : Ready Hot Spare Policy violated : Not Assigned Encrypted : No Layout : RAID-5 Size : 18,627.50 GB (20001125826560 bytes) T10 Protection Information Status : No Associated Fluid Cache State : Not Applicable Device Name : /dev/sdb Bus Protocol : SAS Media : HDD Read Policy : Read Ahead Write Policy : Write Back Cache Policy : Not Applicable Stripe Element Size : 64 KB Disk Cache Policy : Unchanged [root@localhost ~]# [root@localhost ~]# omreport storage adisk Controller=0 ◀ Physical Disk 상태 확인 List of Physical Disks on Controller PERC H730P Adapter (Embedded) Controller PERC H730P Adapter (Embedded) ID : 0:1:0 Status : Ok Name : Physical Disk 0:1:0 State : Online Power Status : Not Applicable Bus Protocol : SATA Media : SSD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : 100% Failure Predicted : No Revision : D3DJ004 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 446.63 GB (479559942144 bytes) Used RAID Disk Space : 446.63 GB (479559942144 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MTFDDAK480TDT Serial No. : 20442B9201B3 Part Number : SG002M3CMCS000B30NDOA00 Negotiated Speed : 6.00 Gbps Capable Speed : 6.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : Not Available Manufacture Week : Not Available Manufacture Year : Not Available SAS Address : 4433221106000000 WWN : 4433221106000000 Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:1 Status : Ok Name : Physical Disk 0:1:1 State : Online Power Status : Not Applicable Bus Protocol : SATA Media : SSD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : 100% Failure Predicted : No Revision : D3DJ004 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 446.63 GB (479559942144 bytes) Used RAID Disk Space : 446.63 GB (479559942144 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MTFDDAK480TDT Serial No. : 20442B9201EE Part Number : SG002M3CMCS000B30NDVA00 Negotiated Speed : 6.00 Gbps Capable Speed : 6.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : Not Available Manufacture Week : Not Available Manufacture Year : Not Available SAS Address : 4433221107000000 WWN : 4433221107000000 Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:2 Status : Ok Name : Physical Disk 0:1:2 State : Online Power Status : Spun Up Bus Protocol : SAS Media : HDD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : Not Applicable Failure Predicted : No Revision : EG03 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 3,725.50 GB (4000225165312 bytes) Used RAID Disk Space : 3,725.50 GB (4000225165312 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MG04SCA40ENY Serial No. : Z0Q0A0NDF74E Part Number : PH01MVTTTB2000CRIO4LA00 Negotiated Speed : 12.00 Gbps Capable Speed : 12.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : 01 Manufacture Week : 53 Manufacture Year : 2020 SAS Address : 5000039A9852920A WWN : 5000039A9852920A Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:3 Status : Ok Name : Physical Disk 0:1:3 State : Online Power Status : Spun Up Bus Protocol : SAS Media : HDD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : Not Applicable Failure Predicted : No Revision : EG03 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 3,725.50 GB (4000225165312 bytes) Used RAID Disk Space : 3,725.50 GB (4000225165312 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MG04SCA40ENY Serial No. : Z0W0A01TF74E Part Number : PH01MVTTTB2000CIIINPA00 Negotiated Speed : 12.00 Gbps Capable Speed : 12.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : 06 Manufacture Week : 51 Manufacture Year : 2020 SAS Address : 5000039A9832701A WWN : 5000039A9832701A Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:4 Status : Ok Name : Physical Disk 0:1:4 State : Online Power Status : Spun Up Bus Protocol : SAS Media : HDD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : Not Applicable Failure Predicted : No Revision : EG03 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 3,725.50 GB (4000225165312 bytes) Used RAID Disk Space : 3,725.50 GB (4000225165312 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MG04SCA40ENY Serial No. : Z0W0A01PF74E Part Number : PH01MVTTTB2000CIIIN6A00 Negotiated Speed : 12.00 Gbps Capable Speed : 12.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : 06 Manufacture Week : 51 Manufacture Year : 2020 SAS Address : 5000039A98326FE6 WWN : 5000039A98326FE6 Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:5 Status : Ok Name : Physical Disk 0:1:5 State : Online Power Status : Spun Up Bus Protocol : SAS Media : HDD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : Not Applicable Failure Predicted : No Revision : EG03 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 3,725.50 GB (4000225165312 bytes) Used RAID Disk Space : 3,725.50 GB (4000225165312 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MG04SCA40ENY Serial No. : Z0Q0A0NCF74E Part Number : PH01MVTTTB2000CRIO4IA00 Negotiated Speed : 12.00 Gbps Capable Speed : 12.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : 01 Manufacture Week : 53 Manufacture Year : 2020 SAS Address : 5000039A98529206 WWN : 5000039A98529206 Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:6 Status : Ok Name : Physical Disk 0:1:6 State : Online Power Status : Spun Up Bus Protocol : SAS Media : HDD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : Not Applicable Failure Predicted : No Revision : EG03 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 3,725.50 GB (4000225165312 bytes) Used RAID Disk Space : 3,725.50 GB (4000225165312 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MG04SCA40ENY Serial No. : Z0Q0A0NBF74E Part Number : PH01MVTTTB2000CRIO6EA00 Negotiated Speed : 12.00 Gbps Capable Speed : 12.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : 01 Manufacture Week : 53 Manufacture Year : 2020 SAS Address : 5000039A98529202 WWN : 5000039A98529202 Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes ID : 0:1:7 Status : Ok Name : Physical Disk 0:1:7 State : Online Power Status : Spun Up Bus Protocol : SAS Media : HDD Part of Cache Pool : Not Applicable Remaining Rated Write Endurance : Not Applicable Failure Predicted : No Revision : EG03 Driver Version : Not Applicable Model Number : Not Applicable T10 PI Capable : No Certified : Yes Encryption Capable : No Encryption Protocol : Not Applicable Encrypted : Not Applicable Progress : Not Applicable Mirror Set ID : Not Applicable Capacity : 3,725.50 GB (4000225165312 bytes) Used RAID Disk Space : 3,725.50 GB (4000225165312 bytes) Available RAID Disk Space : 0.00 GB (0 bytes) Hot Spare : No Vendor ID : DELL(tm) Product ID : MG04SCA40ENY Serial No. : Z0W0A01RF74E Part Number : PH01MVTTTB2000CIIINNA00 Negotiated Speed : 12.00 Gbps Capable Speed : 12.00 Gbps PCIe Negotiated Link Width : Not Applicable PCIe Maximum Link Width : Not Applicable Sector Size : 512B Device Write Cache : Not Applicable Manufacture Day : 06 Manufacture Week : 51 Manufacture Year : 2020 SAS Address : 5000039A9832700A WWN : 5000039A9832700A Non-RAID HDD Disk Cache Policy : Not Applicable Disk Cache Policy : Not Applicable Sub Vendor : Not Available Available Spare : Not Available Cryptographic Erase Capable : Yes |
